Casio Fabric become circular knitting and flat knitting agent for the year of 2005. Machine agents successfully started by S.Thangavel (MD). Now casio fabric now knitting its application in almost all garments and garments related products.

For lisky technologies limited thaiwan so for sold more than 600 machines ( Single Jersy Double Jersy Machine) in tirupur leading exporters and spinning mills. And job work knitters.

1. 1. Special design of Cam, heat-radiation and dust-removal are easy, speed and wear proof are high.
2. 2. RPM is above 28 when Lycra units are applied.
3. 3. Upper plate and Cam box have hidden air flow tunnel, dust can be cleaned on schedule and saves much time to clean the entire machine.
4. 4. Oil-soaking gear with special filter inside, the noise is minimized. Special designed of gear position setup, circularizing and leveling are more accurate, the abrasion hardness is much better.
5. 5. Special ring support makes more operating space; it’s simple and easy to adjust.
6. 6. Application material: Chemical fiber, blended yarn, wool and silk.

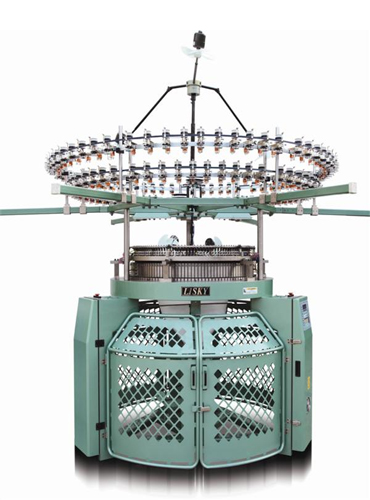

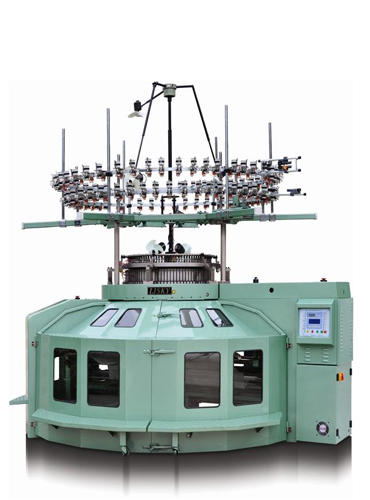

Lisky Characteristic:

Human-based consideration design provides easy-operation for technician in various regions, problem can be solved promptly when machine stops due to malfunction, the machine is readily understandable and efficient. Single closed-type Cam design with special steel material processed by CNC and special heat treatment, the wear proof and interchangeability are high, it keeps the needles moving smoothly and produces high quality fabrics. Unique and patent design of no-dust accumulated cylinder made of special alloy steel is very accurate and stable. The transmission system is controlled by imported inverter, the machine can starts, slowly rotate or jog smoothly. Multi-function control panel is fully user-friendly and easy to operate. The main gear is lubricated by oil-soaking, the machine starts smoothly, the enhanced machine frame is firm and reliable, the operating noise, abrasion and power consumption are low.

New type machine frame:

Computerized 3D simulation technique CAD is applied to the design to improve the machine frame, enhance machine main structure firmness. Shock-proof devices are applied to the machine steel base to ensure the accuracy and stability during high speed operation in long term. New type of modular top ring support requires less space, it is simple, light weight and interchangeable, there are 2 extra air spray for cleaning the machine to prevent dust accumulated.

Cylinder Diameter	Gauge	Feeder	Feeder	Power
20" ~ 44"	16G~40G	60F~264F	20~45	5.5KW~7.5KW

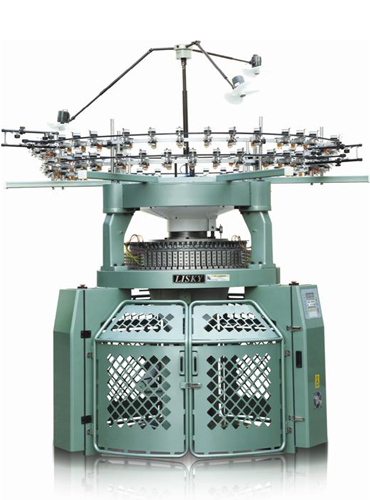

DOUBLE JERSEY/RIB MACHINE/DT SERIES

Lisky Technology keeps working on improving high production and high quality new machine, we provide considerable all aspect design base on the user priority oriented premise to satisfy customer’s maximum operation effectiveness. Compare to traditional double jersey machine, our brand new high production double jersey machine can increase the production more than 50%, the fabrics surface is smooth, the fabrics line is clear and the quality is perfect.

 Lisky RIB

Furthermore, the processing precision of our high production double jersey machine series is much better than the traditional machine, the needle plate and cylinder are made of special imported alloy steel; the quality is superior and durable. The user-friendly design makes installation and interchanging of needle plate and cylinder easier, individual yarn feeder adjustment and whole set yarn feeder interchanging is also easier, various demands of fabrics and operation habit can be met.

Applicable material: Chemical fiber, blended yarn, cotton yarn, wool and silk.

Cylinder Diameter	Gauge	Feeder	Feeder	Power
12" ~ 44"	14G~40G	24F~144F	25~30	3.7KW~5.5KW



Casio Fabric become circular knitting and flat knitting agent for the year of 2005. Machine agents successfully started by S.Thangavel (MD). Now casio fabric now knitting its application in almost all garments and garments related products.

For lisky technologies limited thaiwan so for sold more than 600 machines ( Single Jersy Double Jersy Machine) in tirupur leading exporters and spinning mills. And job work knitters.

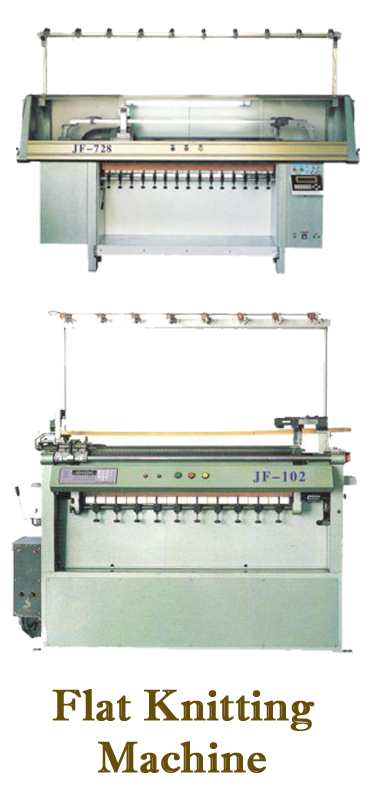

GUAGE 7G,8G,10G,12G,14G,16G

BED WIDTH 40'', 52'', 72'', 76'', 80''  (SINGLE & DOUBLE BED)

YARN FEEDER TWO SIDE INTERCHANGEABLE, 6 MAIN COLOR

CAM SYSTEM & NEEDLE BUTT SINGLE CAM SYSTEM, TUCK ON FRONT BED & REAR BED, HIGH BUTT & LOW BUTT SYSTEM

STITCH SENSIITY 0-99DIVISIONS BY COMPUTER PROGRAM CONTROL

RACKING 1P X 5 SECTION, 1/2P X 1 SECTION

STOP MOTION YARN BREAK, KONT, YARN GUAGE, FABRIC DROP, SHOCK, NEEDLE BREAK, PIECE COUNT, MOTOR OVERLOAD, STITCH MOTOR & CAM MOTOR ERROR. RACKING ERROR

POWER AC220,50/60HZ, SINGLE PHASE, 1/2HP MOTOR. 0.65KW, BY INVERTER CONTROL
